TERRA SELECT

Screening and sifting technology made in Germany. Be it wood, stones or organics, Terra Select can separate it in up to three fractions with only one process. With trommel lengths ranging from 3.2 to 7.5 m, Terra Select machines deliver the best results with throughputs of up to 250 m³ / h.

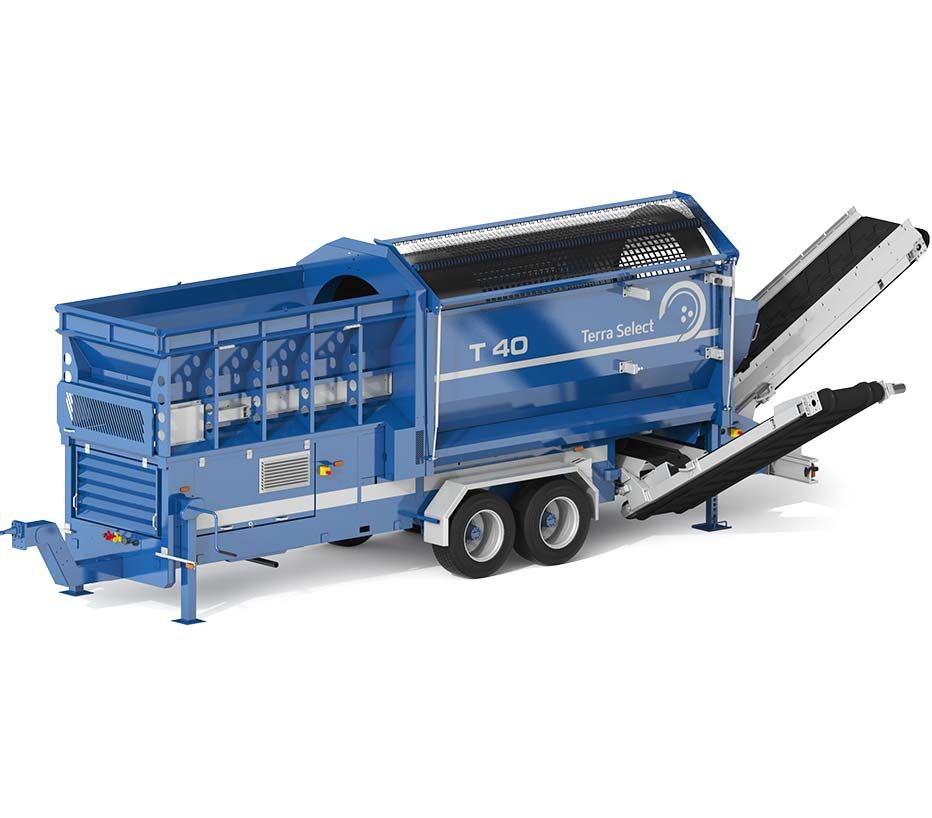

TERRA SELECT T 40

The Terra Select T 40 Mobile Trommel Screening Machine has a high throughput with compact dimensions.

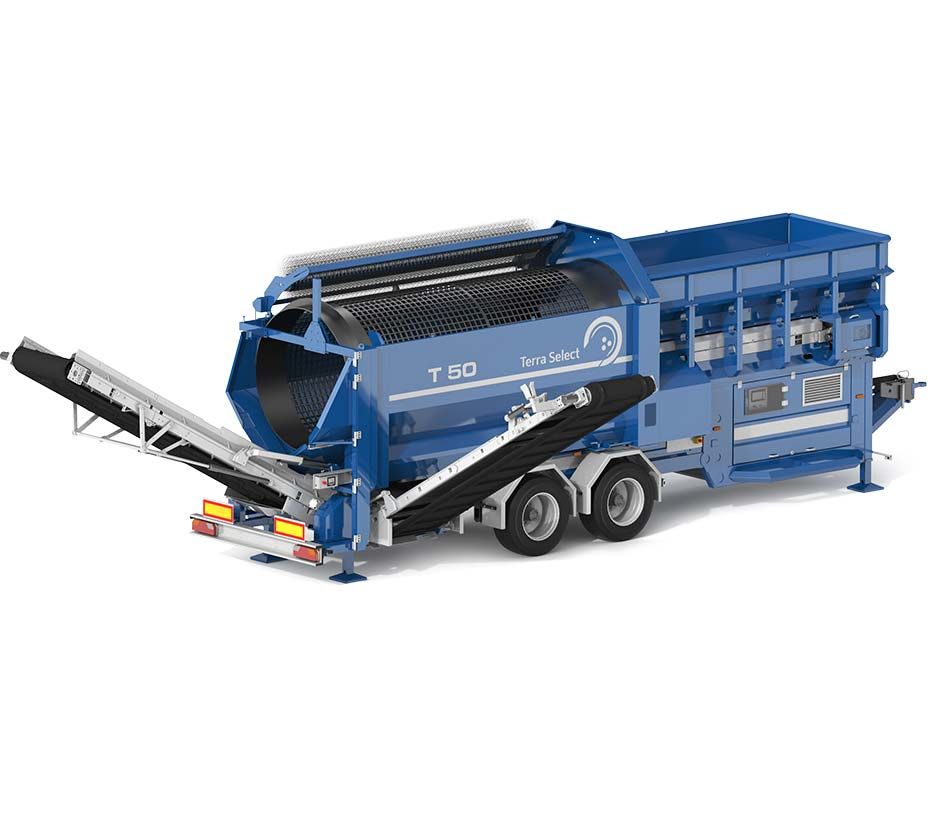

TERRA SELECT T 50

The Terra Select T 50 Mobile Trommel Screening Machine is designed for virtually all areas of application.

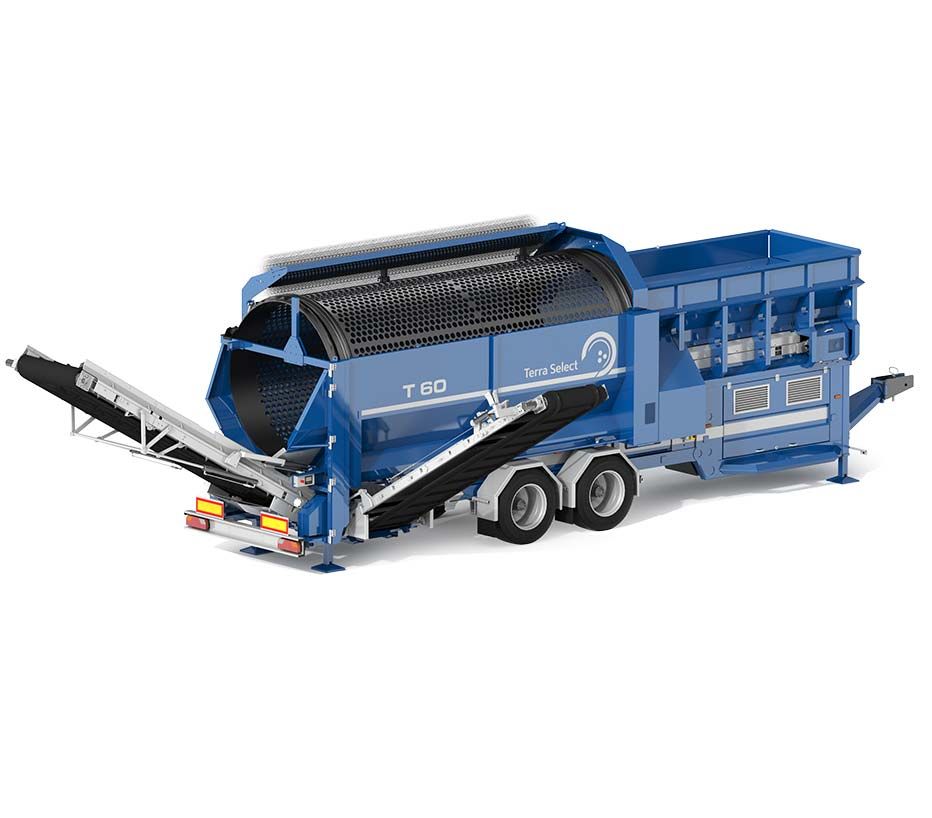

TERRA SELECT T 60

The mobile screening plant / Terra Select T 60 trommel screen combines the highest level of throughput with user oriented engineering design.

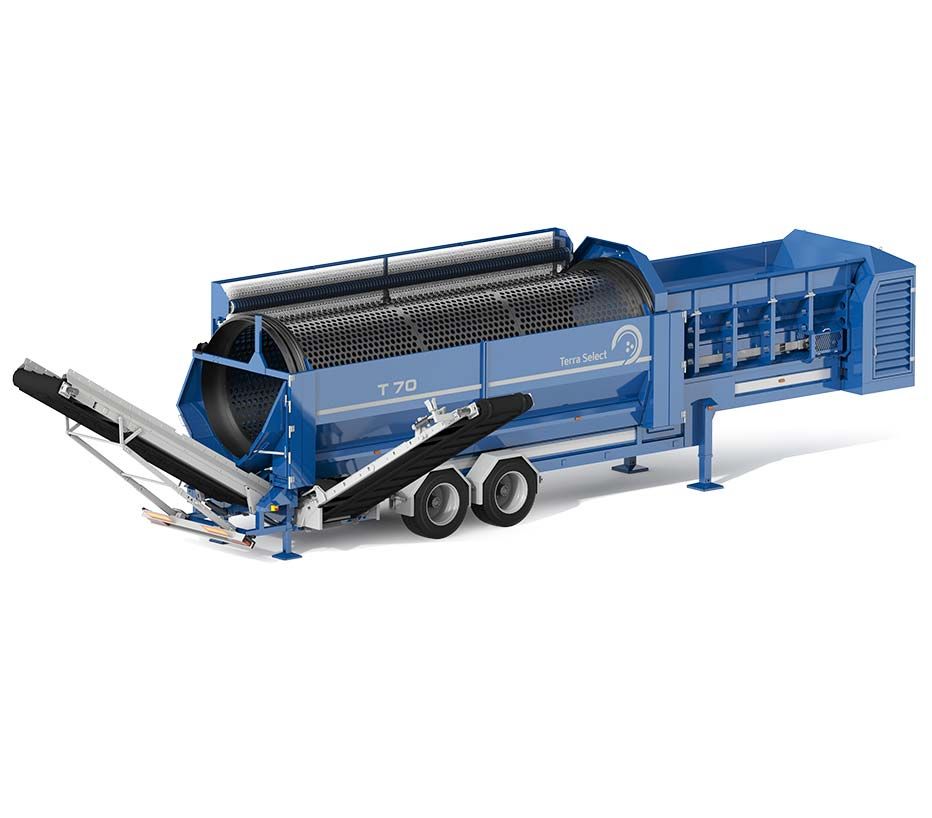

TERRA SELECT T 70

The Terra Select T 70 trommel screen is designed for mobile screening of all types of materials.

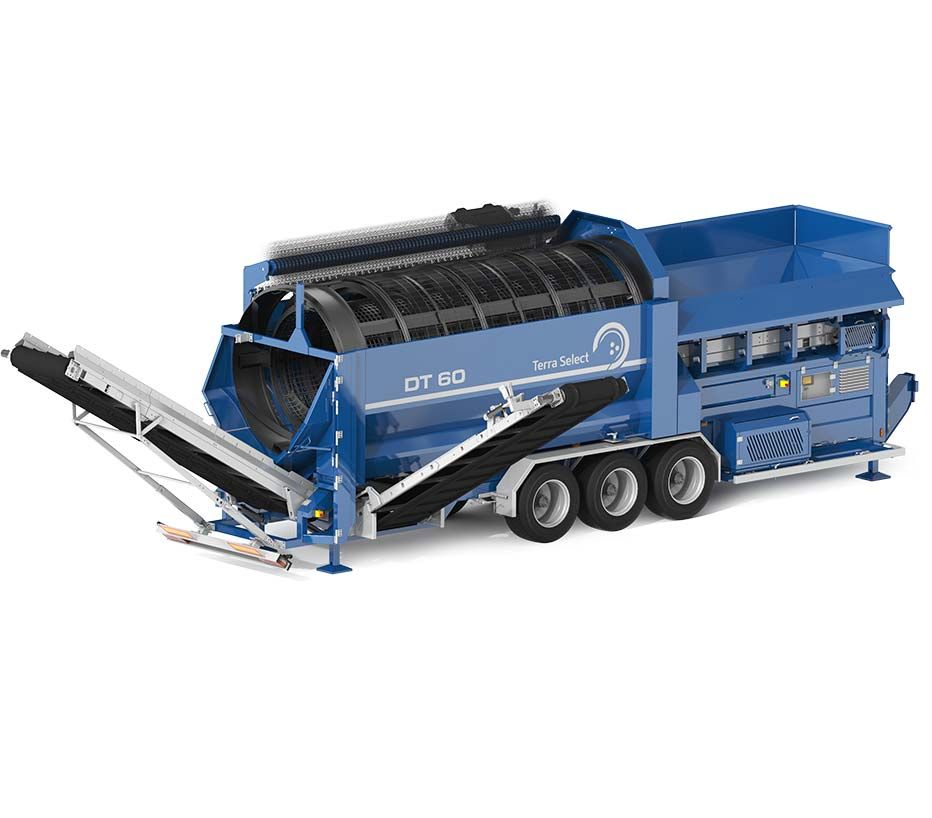

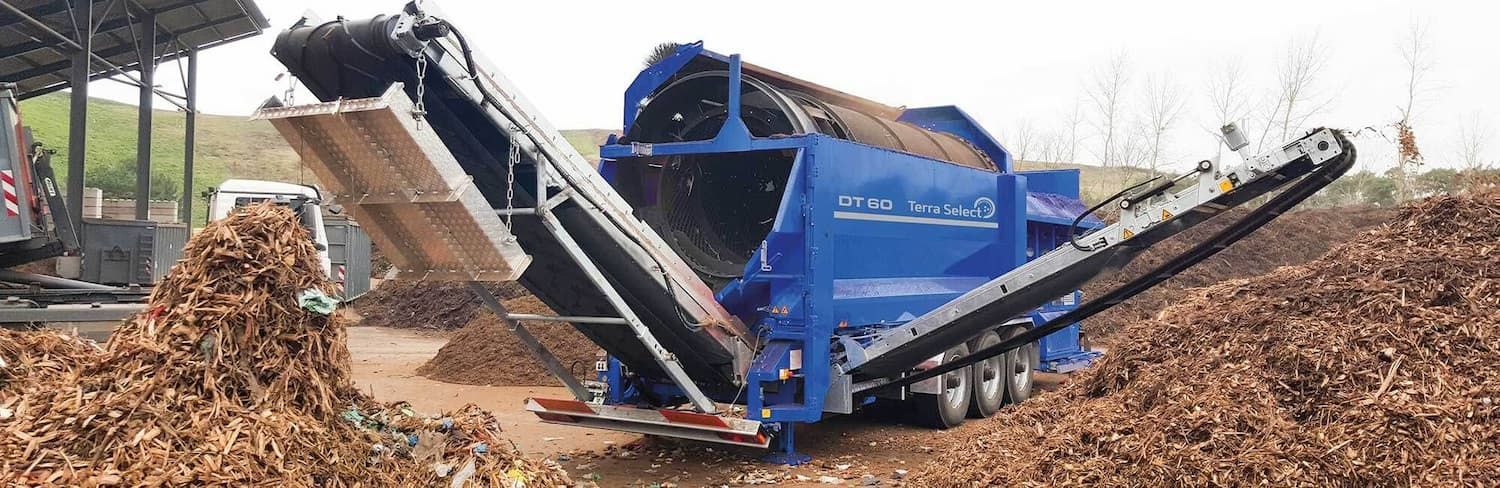

TERRA SELECT DT 60

The Terra Select DT 60 mobile double trommel screen enables the production of three fractions in one operation.

Model

Dimensions (mm)

Engine

Trommel (mm)

Fine grain belt, Oversize grain belt, Hopper (mm)

TERRA SELECT T 30

Working position: Length 10,300, width 6,180  Transport position length 10,300 width 2,550

Diesel motor 25 kW

Trommel length 3,200, Trommel diameter 1,600, Effective screening area 14.5 m², Screening output up to 60 m³/h

Fine grain belt : length 4,100, width 600    Oversize grain belt : length 3,600, width 600    Hopper 2.5 m³

TERRA SELECT T 40

Working position: Length 11,860, width 4,950  Transport position length 9,800 width 2,550

Diesel motor 55 kW

Trommel length 4,200, Trommel diameter 1,600, Effective screening area 19 m², Screening output up to 100 m³/h

Fine grain belt : length 3,400, width 800    Oversize grain belt : length 3,400, width 800    Hopper > 3.4 m³

TERRA SELECT T 50

Working position: Length 14,100, width 6,140  Transport position length 11,200 width 2,550

Diesel motor 55 kW

Trommel length 4,500, Trommel diameter 2,000, Effective screening area 25 m², Screening output up to 150 m³/h

Fine grain belt : length 6.700, width 1,000    Oversize grain belt : length 4,900, width 1,000    Hopper > 6 m³

TERRA SELECT T 60

Working position: Length 15,230, width 6,200  Transport position length 12,000 width 2,550

Diesel motor 75 kW

Trommel length 5,500, Trommel diameter 2,200, Effective screening area 33 m², Screening output up to 200 m³/h

Fine grain belt : length 6.700, width 1,000    Oversize grain belt : length 4,900, width 1,200    Hopper > 6 m³

TERRA SELECT T 70

Working position: Length 16,860, width 6,190  Transport position length 13,600 width 2,550

Diesel motor 75 kW

Trommel length 7,500, Trommel diameter 2,200, Effective screening area 46 m², Screening output up to 250 m³/h

Fine grain belt : length 6.700, width 1,000    Oversize grain belt : length 4,900, width 1,000    Hopper > 6.5 m³

TERRA SELECT DT 60

Working position: Length 15,230, width 9,900  Transport position length 12,000 width 2,550

Diesel motor 75 kW

Trommel length 5,500, Trommel diameter (ext.)2,200, (in.) 1,600 Effective screening area 49 m², Screening output up to 120 m³/h

Fine grain belt : length 6.700, width 800    Medium grain belt : length 6,700, width 1,000     Oversize grain belt : length 4,900, width 1,000    Hopper > 6 m³
