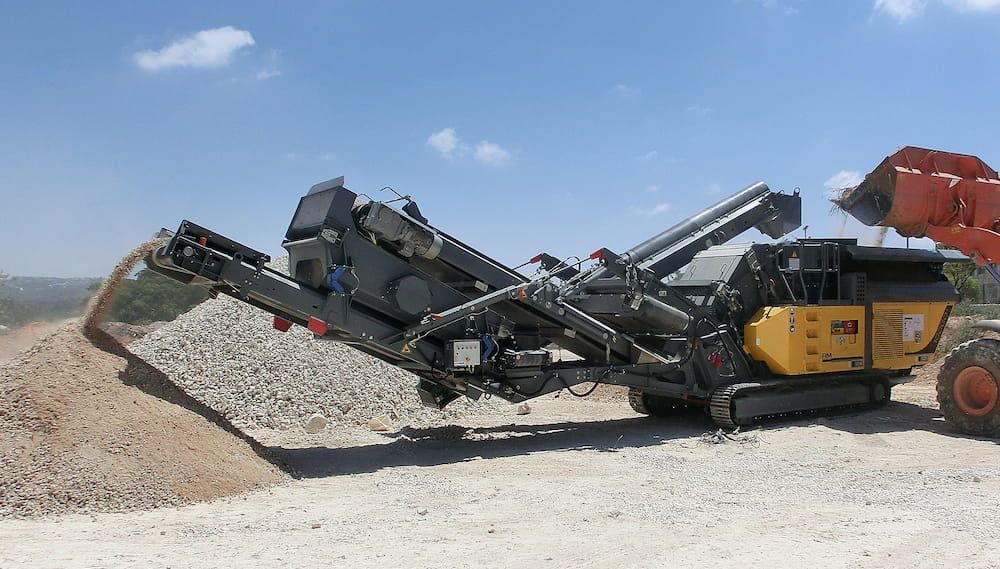

The mesh deck screen makes the mobile crushers even more efficient. The crushed material is screened to the desired end aggregate size in a single pass. Including precise sorting accuracy. The MS is available for the RM 70GO!2.0, RM 90GO! and the RM 100GO!. Both sizes are mounted easily and quickly on the respective crusher with the help of a frame. It is then possible to transport it directly with the RM crusher.
The folding refeeding belt is also integrated into the MS. With this it is possible to set up a closed circuit and produced screened final grain in a single pass. If screened oversize grain is also required, the folding refeeding belt can be used to create a separate stockpile to the side. Throughput remains constantly high in the process – even in small fractions.
|
RM MS mesh deck screens range |
RM MS70GO! |
RM MS105GO! |
RM MS125GO! |
|
Throughput |
Up to 120 t/h, depending on material |
Up to 200 t/h, depending on material |
Up to 300 t/h, depending on material |
|
Screen surface |
2 x 1,050 x 1,055 mm |
2 x 1,500 x 1,300 mm |
2 x 3,700 x 1,480 mm |
|
Feed material size |
Edge length max. 70 mm |
Edge length max. 70 mm |
Edge length max. 85 mm |
|
Screening range |
14 – 70 mm |
14 – 70 |
14 – 70 mm |
|
Discharge height |
2,500 mm |
2,800 mm |
2,870 mm |
|
Weight |
3.3 t |
4.8 t |
6.2 t |
